Why Shaft Grounding Ring is the Smarter Choice for VFD Motors

Introduction

When a VFD-driven motor begins producing a high-pitched whine, maintenance teams often face a common question: how should the bearings be protected from electrical erosion?

Three options dominate the conversation today—traditional carbon brushes, insulated bearings, and modern shaft grounding rings. Each follows a different protection philosophy. This article explains why shaft grounding rings are increasingly considered a smarter choice for VFD motor bearing protection in wind power, industrial, and variable frequency drive applications.

Why VFD Motors Need Shaft Grounding Protection

Variable frequency drives use high-frequency PWM switching to control motor speed and torque efficiently. While this switching improves controllability and energy efficiency, it can also induce common-mode voltage that capacitively couples onto the motor shaft.

When this shaft voltage discharges through the motor bearings, it can cause electrical bearing damage—commonly known as electrical discharge machining (EDM)—including pitting, fluting, increased vibration, abnormal noise, and premature bearing failure.

Providing a controlled, low-impedance discharge path for shaft current is therefore an important part of any modern VFD motor protection strategy.

The Limitations of Traditional Carbon Brushes

Traditional carbon brush grounding uses a spring-loaded graphite block pressed against the rotating shaft. In the early days of inverter-fed motors this was a common workaround, but in modern installations several drawbacks have become harder to ignore:

• Spring pressure can weaken over time, causing brush bounce and intermittent grounding
• Brush wear produces graphite debris that may contaminate seals and lubricants
• Periodic inspection and replacement add to long-term maintenance cost
• Friction and drag torque on the shaft can affect efficiency at higher speeds
• Service life is typically shorter under continuous-duty or high-speed operation

These factors make carbon brush grounding less attractive for modern wind turbines, EV traction motors, and continuous-duty industrial drives.

Why Shaft Grounding Rings Are a Smarter Choice

A shaft grounding ring (SGR) takes a different approach. Instead of blocking shaft current with insulation or relying on a single brush contact, an SGR provides a consistent, low-resistance discharge path through a ring of conductive fibers in continuous contact with the shaft.

Compared with both carbon brushes and insulated bearings, the VOLSUN shaft grounding ring offers three core advantages:

System-Wide Protection vs Local Insulation

Insulated bearings—including ceramic-coated and plastic-sleeved variants—attempt to block current at a single bearing. Because they do not neutralize shaft voltage, the residual potential remains on the shaft and tends to seek another ground path through coupled equipment such as gearboxes, pumps, or encoders. The motor bearing may be protected, but downstream components can become the new failure point.

By maintaining a dynamic contact resistance of approximately ≤10Ω, VOLSUN's metal-coated carbon fiber (MCF) bleeds off shaft voltage before it reaches a discharge level. This helps keep shaft potential close to ground across the entire drive train, not just at one bearing.

Cost-Efficient Modular Design

Insulated bearings—especially ceramic versions—are typically expensive to source and may require complete motor teardown to install. The VOLSUN third-generation RDW series uses a modular ring design that can help reduce comprehensive costs by over 20% in our reviewed cases, depending on motor size and installation method.

Easy Retrofit on Existing Motors

A shaft grounding ring can typically be bolted onto the motor exterior or press-fitted during a routine maintenance window without disturbing internal alignment. Replacing a standard bearing with an insulated one, by contrast, generally requires a full motor disassembly.

Conductive Fiber Contact and Low-Maintenance Design

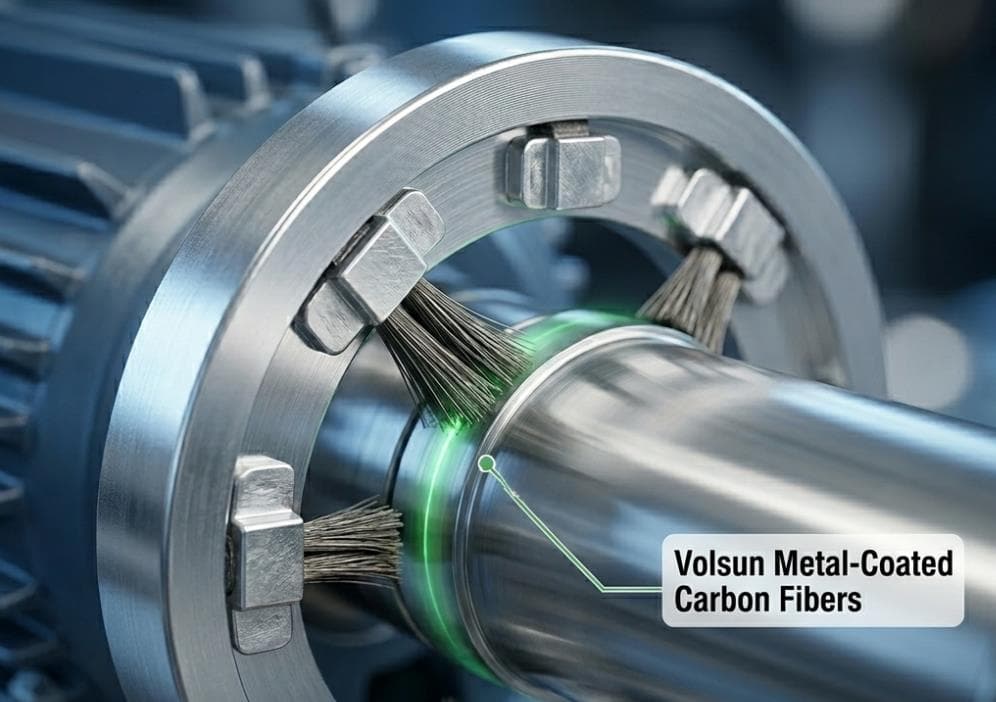

VOLSUN shaft grounding rings use proprietary metal-coated carbon fiber (MCF) microfilaments arranged in a ring around the shaft. Instead of relying on a single brush point, thousands of soft, conductive fibers maintain continuous multi-point contact.

• Thousands of fiber contact points distribute the load and help reduce localized wear
• Verified wear rate of <0.2mm per 300,000 km in oil-cooled environments
• Stable static resistance of <1Ω even when exposed to oil and lubricants
• Drag torque under 0.1N·m in oil-cooled motors—negligible impact on motor efficiency
• Maintenance-free in typical operating conditions, with no spring pressure to adjust

This design is intended to support long-term operation across the typical motor service life, helping protect VFD motor bearings without the routine intervention required by carbon brush systems.

Application Scenarios

Shaft grounding rings are commonly used in motor systems where shaft voltage and bearing currents are a known reliability concern, including:

• Onshore and offshore wind power generators, where motor bearings face long service intervals and harsh environments
• VFD-driven industrial motors used in pumps, compressors, fans, and conveyors
• 800V EV traction motors with high switching frequencies and oil-cooled designs
• HVAC and water-treatment motor systems with continuous variable-speed operation
• Rail and marine traction applications where downtime cost is high

In high-demand environments such as 800V EV traction motors and offshore wind turbines, conventional insulation can also degrade over time due to thermal stress, vibration, or contamination. The MCF technology used in VOLSUN rings is designed for these long-duty, oil-cooled, and high-speed conditions.

Installation and Maintenance Considerations

Correct installation is important to the long-term performance of any shaft grounding ring. Key considerations include:

• Clean the shaft surface in the contact area before mounting
• Choose a mounting method (bolt-on bracket, press-fit, or adhesive) appropriate to the motor structure
• Confirm that the conductive fibers contact the shaft evenly, without excessive pressure
• Ensure the ring or its mounting bracket has a reliable connection to the motor housing or grounding point
• Test electrical continuity from the ring to ground after installation

Once installed, VOLSUN shaft grounding rings are designed to be largely maintenance-free, with periodic visual inspection generally sufficient under typical operating conditions.

Conclusion

For modern VFD-driven motors, the choice of shaft current protection has a direct impact on bearing reliability, downtime cost, and total cost of ownership.

Compared with traditional carbon brushes, shaft grounding rings can support cleaner operation, longer service life, and lower maintenance overhead. Compared with insulated bearings, they are designed to deliver system-wide protection at lower retrofit cost. For wind power, industrial, and EV motor platforms, a properly specified shaft grounding ring is increasingly considered the smarter choice for long-term VFD motor bearing protection.

For sizing, application support, or selection between carbon brush replacement, insulated bearing pairing, or full SGR retrofit, the VOLSUN technical team can review your motor nameplate and shaft diameter on request.

Frequently Asked Questions

What does a shaft grounding ring do?

A shaft grounding ring provides a low-resistance discharge path for shaft voltage that can be induced on the motor shaft by VFD switching. By bleeding off this voltage to ground in a controlled way, it helps reduce the risk of electrical bearing erosion, fluting, and premature bearing failure.

Why do VFD motors need bearing protection?

VFDs use high-frequency PWM switching that can capacitively couple voltage onto the motor shaft. If this voltage discharges through the bearings, it can damage the raceways and shorten bearing life. Adding a shaft grounding ring is a common way to help mitigate this risk.

Is a shaft grounding ring a replacement for a carbon brush?

In most modern installations a shaft grounding ring is used as a carbon brush alternative. It avoids the wear debris, periodic replacement, and brush-bounce issues that affect carbon brush grounding. The two solutions are not normally combined on the same shaft.

Can I use a shaft grounding ring together with an insulated bearing?

Yes. For larger motors—commonly above 100 HP / 75 kW—a widely used industry approach is to install a shaft grounding ring on the drive end and an insulated bearing on the non-drive end. This combination helps protect against both shaft-to-ground voltage and high-frequency circulating currents.

Where are shaft grounding rings commonly used?

Typical application areas include wind power generators, VFD-driven industrial motors (pumps, fans, compressors, conveyors), EV traction motors, HVAC and water-treatment systems, and rail and marine traction motors. They are especially relevant where motor reliability and uptime are critical.
